Key Takeaways
- Concrete block machines efficiently transform raw materials like cement, sand, and water into quality building blocks, streamlining construction and reducing manual labor.
- These machines come in manual, semi-automatic, and fully automatic variants, each suited for different production needs and labor availability.
- Key components include a robust frame, molding system, hydraulic system, and advanced control panel, ensuring consistent block quality and long-term durability.
- Using a concrete block machine increases production capacity, guarantees block uniformity, lowers labor costs, and minimizes material waste for both small and large projects.
- The versatility of interchangeable molds allows for the fast production of various block types, supporting a wide range of construction applications, from residential buildings to infrastructure and landscaping.
A concrete block machine transforms raw materials including cement, sand, and water into standardised building blocks through automated compression and moulding processes. These versatile machines range from manual to fully automatic variants, producing between 3,000 to 20,000 blocks daily whilst ensuring consistent quality and dimensional accuracy. Essential for modern construction projects, they significantly reduce labour costs and material waste whilst supporting residential, commercial, and infrastructure applications.

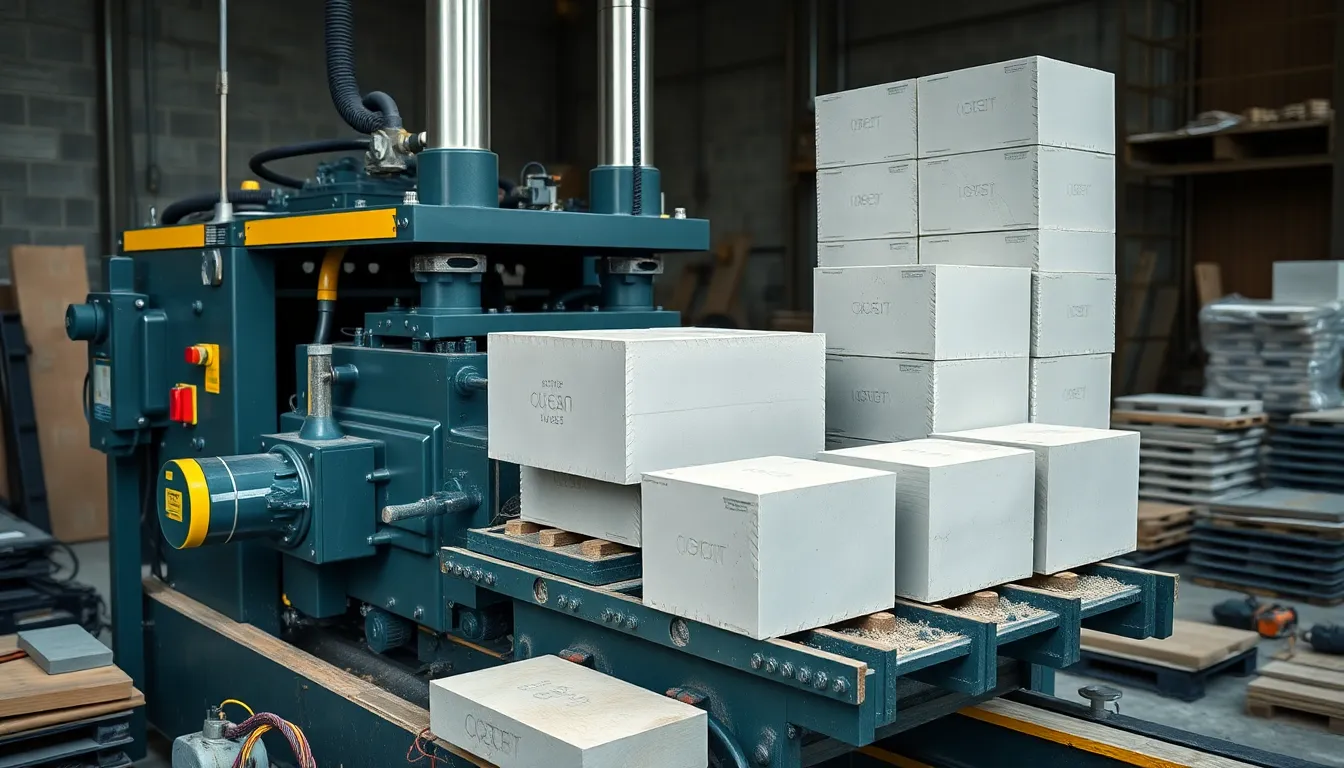

Understanding What Is a Concrete Block Machine
A concrete block machine forms building blocks by compressing a cement mixture into specific shapes and sizes. It uses raw materials like cement, aggregate, sand, and water. Block machines employ molds and hydraulic or mechanical presses to shape blocks quickly. These machines increase output efficiency on construction sites and in manufacturing plants.
Automatic and semi-automatic concrete block machines differ in control and labor needs. Automatic units, like those from Lontto in Chicago, use PLC systems for precision and speed, while semi-automatic options require more manual input. Both types consistently produce durable masonry units for structural and non-structural use.
A block machine typically includes a hopper for raw material feeding, mold chambers for shaping, and vibration or pressing mechanisms for compaction. Lontto machines are engineered for low energy consumption, minimal downtime, and batch-to-batch uniformity, supporting strict building standards in commercial and residential construction.
Every machine’s output rate, block dimensions, and material compatibility specify its application suitability. Lontto Chicago provides machines with a daily capacity of 3,000–20,000 standard blocks, as suited for large or small-scale projects. Consistent block shape and density supports faster wall assembly and reduces post-production waste.

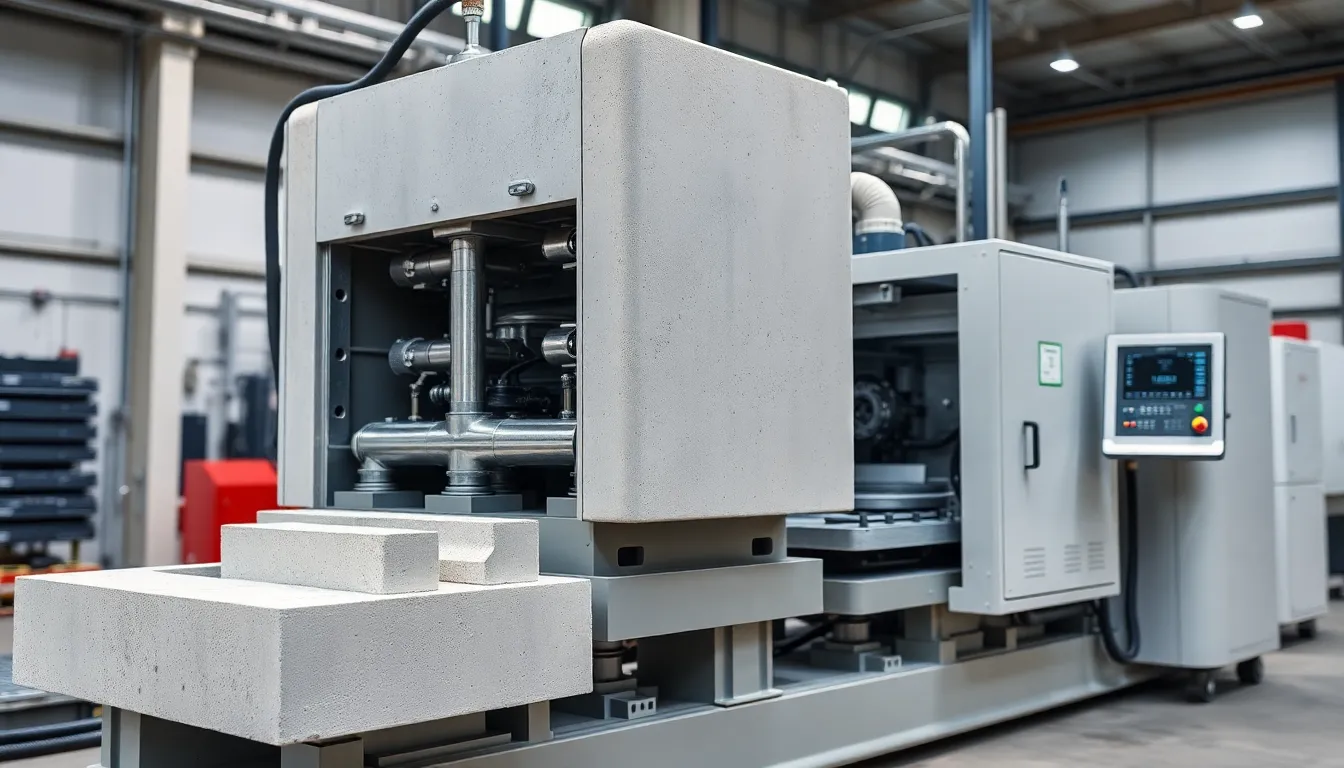

Key Components of a Concrete Block Machine
A concrete block machine operates through several integrated systems that coordinate to produce consistent, high-quality masonry blocks. Each component plays a distinct role, affecting machine durability, automation, and the final block output.
Frame and Structure
The frame and structure provide mechanical support for the entire concrete block machine. Precision-welded steel frameworks, like those in Lontto’s Chicago models, resist deformation under high production loads. Manufacturers reinforce load-bearing zones with thicker steel plates and robust fasteners, ensuring a long service life under cyclical pressures. The structural design aligns critical components, minimizing vibration to prolong equipment longevity and guarantee block dimensional accuracy.
Molding System
The molding system forms the shape and size of every block using interchangeable steel molds. Operators load different mold sets for products like standard hollow blocks or paving stones. Lontto machines use hardened alloy steel for mold cavities, extending cycle life and maintaining block consistency over thousands of cycles. Quick-release mechanisms allow for fast mold changes, maximizing production flexibility and reducing downtime between batches.
Hydraulic System
The hydraulic system supplies pressure for compacting and ejecting blocks. Lontto’s models feature variable-displacement hydraulic pumps and high-tensile hoses for stable, controlled force application. Hydraulics control main pressing cylinders, vibrators, and pallet feeders to ensure each block meets density standards. Manufacturers include advanced filtration to prevent particulate contamination, maintaining reliable output and reducing hydraulic maintenance over long-term operation.
Control Panel
The control panel oversees all machine functions, balancing manual input and automated processes. Lontto’s automatic models use programmable logic controllers (PLC) with touchscreen displays, enabling precise adjustments for block height, vibration time, and feed rates. Emergency stop buttons and interlocks increase safety during operation. Data logging functions help operators review production metrics like block count and cycle time for ongoing efficiency improvements.
Types of Concrete Block Machines
Concrete block machines are categorized by their level of automation and operational design. Equipment selection depends on production volume, labor availability, and required product uniformity. Lontto in Chicago supplies all main types to fit construction needs.
Manual Concrete Block Machines
Manual concrete block machines use lever or crank mechanisms, with operators filling and compressing the mold by hand. Single-operator machines produce 300 to 1,000 blocks daily, with production rates dependent on operator speed and mold size. These machines suit small-scale, budget-limited operations where electricity is unreliable. No PLC or hydraulic system is integrated. Lontto offers robust frame designs, field service support, and interchangeable molds for adaptable output. Example models feature simple mechanical parts, easy portability, and minimal maintenance needs.
Semi-Automatic Concrete Block Machines
Semi-automatic concrete block machines require manual loading of materials, but mechanical or hydraulic systems control molding, compaction, and block ejection. Output ranges from 2,000 to 6,000 blocks per shift, depending on the configuration and number of molds. Lontto’s Chicago-based semi-automatic models use powered conveyors and surface vibrators, reducing manual intervention while increasing accuracy. Operators monitor block ejection cycles and stack finished blocks. Machines balance automation with labor efficiency and can adapt to site conditions, making them suitable for medium-scale contractors and plant operators.
Fully Automatic Concrete Block Machines
Fully automatic concrete block machines handle all stages—material batching, mixing, mold filling, compaction, curing, and finished block stacking—without manual input beyond periodic supervision. Servomechanisms, PLC touchscreens, and hydraulic presses enable 8,000 to 20,000 blocks per day, supporting high-volume commercial operations. Lontto’s automated lines in Chicago integrate variable-displacement pumps and real-time quality monitoring. Operators supervise via control panels and intervene for maintenance or recipe adjustments. These machines maximize consistency, speed, and efficiency, making them suitable for large-scale construction material producers and precast product plants.
How a Concrete Block Machine Works
A concrete block machine converts prepared raw materials into finished masonry blocks through a sequence of automated or semi-automated stages. Lontto in Chicago designs machines that coordinate material handling, compaction, and curing for repeatable, standardized output.
Raw Material Preparation
Operators collect, proportion, and store essential inputs such as cement, sand, aggregate, and water. Lontto machines support material bins and integrated conveyor systems that help maintain precise ingredient ratios for each batch. Automated hoppers reduce manual measurement errors, ensuring product consistency. Storage silos keep materials dry and ready. Sensors monitor moisture to prevent improper mixes. Proper raw material handling lowers reject rates and supports compliance with ASTM C90 and local construction standards.
Mixing and Feeding
Mixers blend cement, sand, aggregates, and water to form a consistent concrete mixture. Lontto machines in Chicago utilize twin-shaft planetary or pan mixers that combine materials in under 3 minutes per batch. The mixer releases finished concrete into a hopper, where automated feeders or conveyors transport the mix to the molding station. Programmable controls regulate batching, mixing speed, and discharge intervals. Uniform feeding eliminates segregation and voids, supporting consistent block quality.
Molding and Compaction
The molding station receives the prepared mix, filling steel molds shaped for specific block sizes such as 400×200x200 mm. Hydraulic or mechanical presses then compact the mixture under up to 120 kN. Lontto’s hydraulic presses achieve uniform density across all blocks, enhancing strength and durability. Mold vibrations further consolidate the mix, reducing entrapped air. Interchangeable molds allow rapid block shape changes. PLC units monitor compaction force and mold dwell times to optimize strength for every batch.
Curing and Ejection
Blocks remain in molds briefly, then eject automatically or with manual triggers. Lontto machines support curing racks or chambers where blocks harden under controlled humidity and temperature for 18 to 24 hours. Fast-setting cement recipes accelerate the process if needed. Robotic arms or conveyors transfer the blocks from the ejection area to curing racks, minimizing handling damage. Controlled curing increases compressive strength and lowers defects, ensuring ANSI compliance for construction projects.
Benefits of Using a Concrete Block Machine
Increased Production Capacity
Concrete block machines, such as Lontto models in Chicago, can reach daily outputs of 3,000 to 20,000 standard blocks, supporting the needs of both large developers and small contractors. These machines automate mixing, molding, and compaction, reducing manual handling and increasing work speed.
Consistent Block Quality
Automated controls and precision molds in block machines standardize size, density, and strength for each unit produced. This uniformity supports compliance with ANSI and building code requirements on projects from warehouses to residential buildings.
Reduced Labor Cost
Block machines decrease labor requirements by automating batching and pressing stages. For example, Lontto’s fully automatic machines use PLC systems that let one operator manage the entire production line, lowering payroll expenses for construction sites.
Lower Material Waste
Precise batching systems and efficient mixing prevent excess use of cement and aggregates. Automated feeding in models like Lontto’s semi-automatic type ensures only as much material as needed enters the mixer, cutting leftover waste.
Energy Efficiency
Lontto machines use hydraulic and vibration systems that run on low power compared to traditional block-making by hand. This energy efficiency supports continuous operation with minimal electricity demand, lowering operational costs over time.
Flexible Production Options
Machines with interchangeable molds produce a range of block types, including hollow, solid, interlocking, and paving blocks. Adjustments take minimal time, letting operators shift production quickly as project design changes.
| Benefit | Description | Example/Lontto Feature |
|---|---|---|
| Increased Output | 3,000–20,000 blocks per day | Lontto large-scale machine lines |
| Block Quality Uniformity | Each block meets ANSI standards | Precision steel molds |
| Labor Cost Savings | Automation lessens worker need | One-operator PLC system |
| Lower Material Waste | Exact batching and mixing reduce waste | Automated feed equipment |
| Energy Efficiency | Low energy hydraulic systems support constant use | Energy-saving hydraulic systems |
| Versatile Production | Quick switch between block types with interchangeable molds | Multiple block mold options |
Common Applications of Concrete Block Machines
Concrete block machines support a wide range of construction projects by enabling rapid, uniform block production. Builders use these machines for the following applications:
- Residential Building Construction: Contractors use concrete block machines to produce standard blocks for houses, apartments, and duplexes, meeting local code requirements for structural walls.
- Commercial and Industrial Building: Enterprises use block machines in factories, warehouses, and office complexes for load-bearing walls and non-load-bearing partitions. Lontto‘s high-capacity models in Chicago handle up to 20,000 blocks daily, supporting project timelines.
- Infrastructure Projects: Municipalities and civil contractors deploy concrete block machines for retaining walls, bridge abutments, utility vaults, and flood barriers. Consistent block dimensions ensure structural reliability.
- Paving and Landscaping: Landscapers use block machines to produce interlocking pavers, garden blocks, and decorative masonry for driveways, paths, and retaining structures. Interchangeable molds on Lontto equipment allow rapid shifts in production.
- Low-Cost Housing Initiatives: Government and NGO programs rely on block machines for affordable housing developments, enabling mass production that meets budget and quality goals. Automated Lontto machines reduce labor input and material waste.
Production flexibility, mold versatility, and batch uniformity make Lontto concrete block machines suitable for both small contractors and large-scale construction firms across multiple segments.
About Lontto
Lontto, based in Chicago, IL, is a leading manufacturer specialising in block and brick making machines.
Under the leadership of CEO Chao Zhang, Lontto offers a wide range of products including concrete block machines, mobile block making machines, and compressed earth block machines. In addition to manufacturing, Lontto provides installation and training services to ensure the efficient operation of their equipment, helping clients achieve high-quality production results.
Contact:
Chao Zhang, CEO
Phone: 708 260 8300
Email: [email protected]
Address: 4992 S Austin Ave, Chicago, IL 60638, USA
Website: www.block-machine.net
Frequently Asked Questions
What is a concrete block machine?
A concrete block machine is equipment that automates the production of building blocks by compressing a mixture of cement, sand, and water into specific shapes and sizes using molds and hydraulic or mechanical presses.
How does a concrete block machine work?
The machine mixes raw materials, feeds the mixture into molds, compacts it under high pressure, and then ejects and cures the finished blocks. Automated systems further enhance consistency and efficiency throughout the process.
What are the main types of concrete block machines?
There are three main types: manual (requires most human effort), semi-automatic (some processes automated), and fully automatic machines (highly automated and use PLC control systems).
What are the key components of a concrete block machine?
Key components include the frame and structure for support, a molding system with steel molds, a hydraulic or mechanical press, and a control panel for manual or automated operation.
What are the benefits of using a concrete block machine?
Benefits include consistent block quality, high production capacity, labor cost savings, reduced material waste, energy efficiency, and the ability to produce a variety of block types for different projects.
How many blocks can a Lontto concrete block machine produce daily?
Depending on the model, Lontto machines can produce between 3,000 and 20,000 standard blocks per day, making them suitable for both small and large construction projects.
What types of blocks can be produced with a concrete block machine?
These machines can produce standard building blocks, load-bearing and non-load-bearing walls, interlocking pavers, decorative masonry blocks, and paving blocks for landscaping and infrastructure.
Where are concrete block machines commonly used?
Concrete block machines are used in residential, commercial, and industrial construction; infrastructure projects like retaining walls and flood barriers; paving; landscaping; and low-cost housing initiatives.
How do automated concrete block machines improve production?
Automated machines ensure precise mixing, molding, and curing, resulting in uniform blocks with minimal defects, reduced labor costs, and faster production speeds.
Are concrete block machines energy efficient?
Yes, modern concrete block machines, like those from Lontto, are designed for low energy consumption and minimal downtime, making them cost-effective for continuous production.
